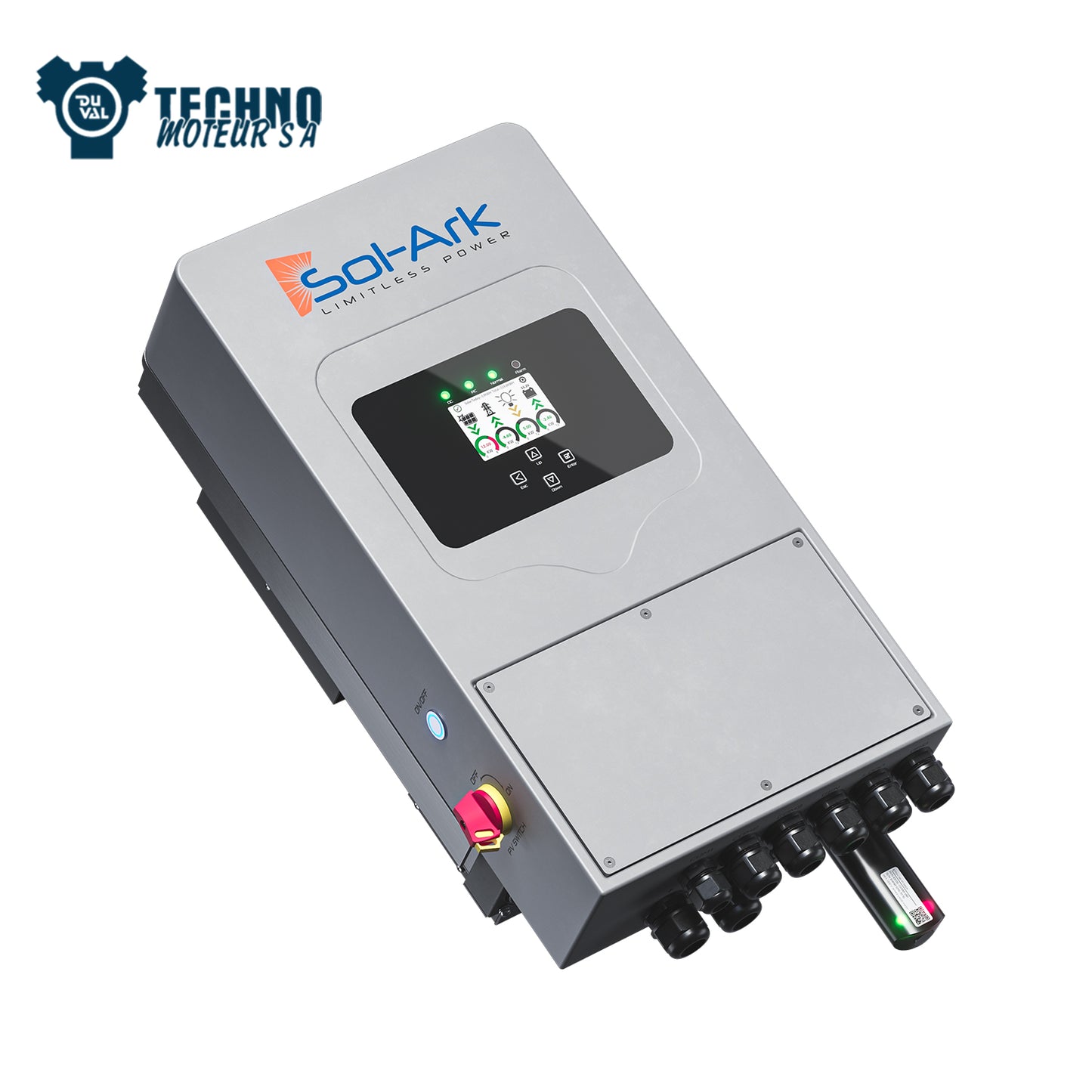

SOL-ARK INVERTERS / 5K-1P-N / Hybrid Inverter / Stackable
SOL-ARK INVERTERS / 5K-1P-N / Hybrid Inverter / Stackable
Prix habituel
$0.00
Prix habituel
Prix promotionnel
$0.00
Prix unitaire
par
Impossible de charger la disponibilité du service de retrait
Specifications
| Max allowed PV Power | 10,400W |
| Max allowed PV Power per MPPT | 5,200 Watts |
| PV Input Voltage | 370V (100~500V) |
| MPPT voltage range | 150-425V |
| MPPT Starting Voltage | 175V |
| Number of MPPT / Range (V) | 2 | 125-425V |
| Nominal AC Output Voltage | 120/230V single phase |
| Solar Strings Per MPPT | 2 + 2 |
| Peak Inverter Efficiency | 97.6% |
| Grid Type (Single Phase only) | 120V | 1P |
| Rated AC Output | 4,800W |
| Peak Power (Off-Grid) | 10,000W | 10S |
| Rated AC Output Current (A) | 40 A |
| Parallel Stacking | Yes - Up to 8 |
| Frequency | 60/50Hz |
| Max continuous AC passthrough (A) | 50A |
| Max Efficiency | 97.6% |
| Idle Consumption Typical—No Load | 60W |
| Sell Back Power Modes | Limited to Household/Fully Grid-Tied |
| Design (DC to AC) | Transformerless DC |
| Response Time (Grid-Tied to Off-Grid) | 5ms |
| Power Factor | +/- 0.8 - 1.0 |
| Battery Type | Lead-Acid or Li-Ion |
| Nominal DC Input | 48V |
| Capacity | 50 – 9900Ah |
| Grid to Battery Charging Efficiency | 96.0% |
General Specifications
| Dimensions (H x W x D) | 22.8” x 13.0” x 9.1” |
| Weight | 51 lbs (62 lbs - shipping weight) |
| Enclosure | IP65 / NEMA 3R |
| Installation Style | Wall-Mounted |
| Wi-Fi & LAN Communication | Included |
| Standard Warranty | 10 Years |
Protections & Certifications
| PV Input Lightning Protection | Yes |
| Grid Sell Back — UL1741-2010/2018, IEEE1547a- 2003/2014, FCC 15 Class B | Yes |
| Anti-Islanding Protection | Integrated |
| PV String Input Reverse Polarity Detection | Integrated |
| PV Arc Fault Detection — NEC 690.11 | Integrated |
| Insulation Resistor Detection | Integrated |
| Residual Current Monitoring Unit | Integrated |
| Output Over Current Protection | Integrated |
| Output shorted Protection | Integrated |
