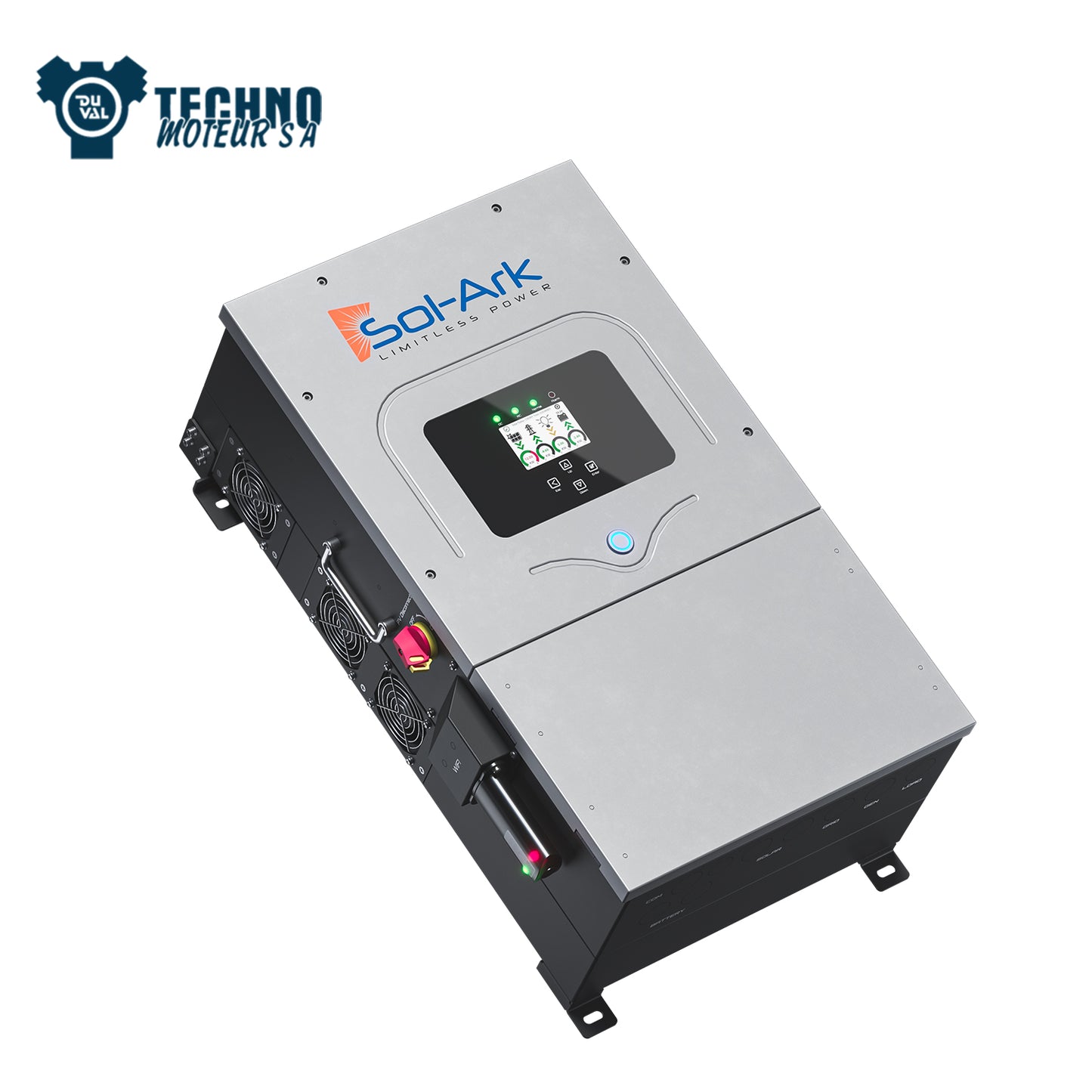

Sol-Ark - 15K-2P / 48VDC/ 120/240VAC / Hybrid Inverter / Stackable

Name: Sol-Ark - 15K-2P / 48VDC/ 120/240VAC / Hybrid Inverter / Stackable
Brand: TECHNOMOTEUR S.A
Availability: InStock

$0.00

Promotion Épuisé

Quantité

Model	Sol-Ark 15K-2P-N
Max PV Power (STC)	19,500W
Nominal AC Voltage	120/240V, 120/208V, 220V
Nominal DC Voltage	48V
Number of MPPT	3
MPPT Voltage Range	150 - 500V
Battery Technologies	Lithium / Lead Acid
Ambient Temperature	-25~55°C, > 45°C Derating
Standard Warranty	10 Years
Dimensions (H x W x D)	31.8 x 19.4 x 12 in
Weight	61.2 Kg / 135 lb.
Enclosure	NEMA 1 INDOOR only
Certifications and Listings	UL1741-2010/2018, IEEE1547a 2003/2014, FCC 15 Class B, UL1741SB, CA Rule 21, HECO Rule 14H

Sol-Ark Limitless 15K-LV Residential Hybrid Inverter

Introducing the Sol-Ark 15K-2P-N Residential Hybrid Inverter, a powerful and versatile solution for your solar energy needs. This inverter is designed to maximize your solar power production while providing reliable backup power during grid outages.

With its advanced features like SmartSensor™ and AI-powered smart load management, the Sol-Ark 15K-2P-N optimizes your energy output and helps you save on electric bills.

Sol-Ark 15K-2P Hybrid Inverter Features

19.5 KW Solar Input Power

Features x3 built-in MPPTs for a maximum DC coupled power of 19,500 W, a max AC coupled solar input of 19,200 W, and a max combined solar input of 38,400 W.

15 KW Output Power Off-Grid

Delivers a continuous AC power output of 15,000 W with PV and supports 120/240/208V connections for off-grid applications.

Battery Agnostic

Supports both lead acid and lithium battery chemistries with a 48V nominal battery voltage. Any battery with a nominal DC voltage of 48V and a 275A continuous battery charging output is compatible.

Inverter-Integrated Transmitter

The Sol-Ark 15K-2P-N inverter comes with an integrated transmitter that provides the necessary "heartbeat signal" for Rapid Shutdown Device (RSD) functionality. TX-15K-A Specification Sheet.

Sol-Ark 15K-2P-N Monitoring Technolgies

The Sol-Ark 15K-2P-N comes equipped with advanced monitoring technologies to keep you informed about your solar system's performance. The included Wi-Fi, Ethernet and local monitoring allow for easy remote monitoring and control. Additionally, the inverter supports generator start communication for whole-home backup.

Sol-Ark 15K-2P-N Protections & Certifications

This inverter is certified to meet the latest industry standards, including UL1741-2010/2018, IEEE1547a 2003/2014, FCC 15 Class B, UL1741SA, CA Rule 21, and HECO Rule 14H. It also features integrated protection mechanisms and closed loop communication with most high-end lithium batteries.
