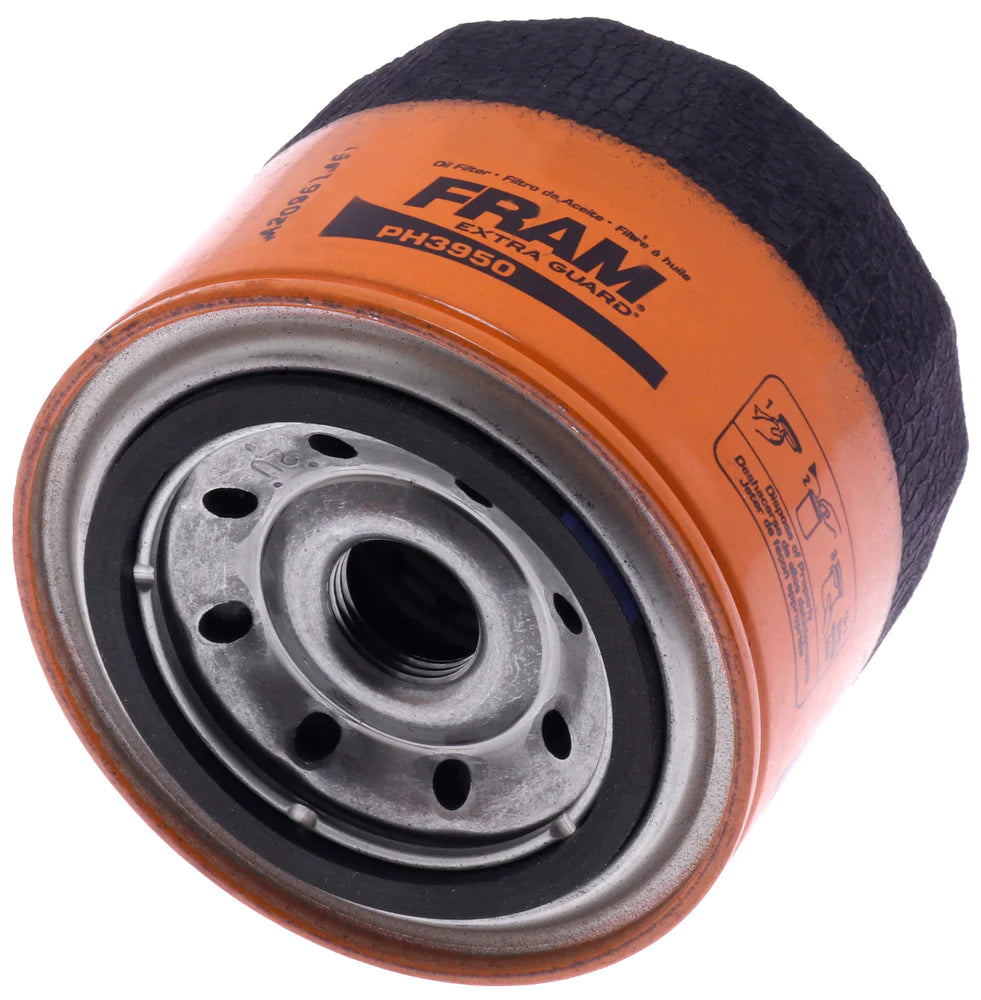

Oil filter PH3950 FRAM
Oil filter PH3950 FRAM
SPECIFICATIONS:
- Anti-Drain Back Valve: Yes
- Burst Pressure: 310.000 PS
- Bypass Relief Valve: Yes
- Bypass Relief Valve Setting: 12.000 PS
- Filter Media Material: Cellulose/Synthetic Blend
- Filter Type: Spin-On Canister
- Gasket Inside Diameter: 3.130 IN
- Gasket Material: Base
- Gasket Outside Diameter: 3.531 IN
- Gasket Thickness: 0.078 IN
- Gasket Type: Base
- Height: 3.105 IN
- Inside Thread Diameter: M20x1.5
- Marine Approved: No
- Micron Rating: 8.000 Microns
- Non Slip Grip: Yes
- OEM Interchange: FX1001, GF-212, GM3856, GP40, HP-1005, K18, L10193, L10193, L11-1333, L3856, L5, LF-74, LF543, LF798, LFR-8798, M-55, OF21, OF66, P502076, PF1177, PH2810, PH2856A, PH2856A, PH2856A, R1381, T1349452, TF2865A, TFC-517, V7662, W920/97, 3031130,
- Outside Diameter: 3.656 IN
- Thread Size: Metric
- Torque Nut: No
This item may interchange to the following part numbers from other brands. This is provided for reference only and does not guarantee that the part your are buying is identical to the part numbers from the brands listed below. To confirm that this part fits your vehicle, enter your vehicles Year, Make, Model, Trim and Engine in the Compatibility Table.
- ALLIS CHALMERS 74920158
- AMSOIL EAO21
- AUTO EXTRA 61851381
- AUTOPAR FE324
- AUTOPRO 2381
- AUTOWIZE A17
- AWARD AOF-160
- BALDWIN B307
- BECK/ARNLEY 041-8707
- BIG A 92381
- BRAVO BF193
- CAM2 C193
- CARQUEST BF193
- CASITE CF389
- CENEX CO425
- CROSLAND 2065
- DEFENSE DL3950
- DELPHI FX1001
- DEUTSCH D331
- EVERGARD E2856A
- FLAG C-6811
- GENERAL MOTORS 94243270
- HYUNDAI 26300-21A00
- IHC-NAVISTAR 1962769C2
- INSTALLER EDGE AL3950
- IPD 10070
- ISUZU 8-94243-502-1
- ITM 111-1106
- LPM 1350-5381
- MAHINDRA 14501673990
Additional Specifications:
Burst Pressure (PS): 310.000
Gasket Inside Diameter (IN): 3.130
Each Length (Inches): 3.848
Filter Media Material: Cellulose/Synthetic Blend
Bypass Relief Valve: Yes
Each Height (Inches): 3.259
Each Weight (Gross Pounds): 0.775
Gasket Thickness (IN): 0.078
Comment: Spin-on Oil Filter
Anti-Drain Back Valve: Yes
Country of Origin (Primary): US
Gasket Outside Diameter (IN): 3.531
Each Width (Inches): 3.848
Gasket Material: Base
Filter Type: Spin-On Canister
Bypass Relief Valve Setting (PS): 12.000
This Part Fits | |
---|---|
Buick Opel | 1976, 1977, 1978, 1979 |
Chevrolet LUV | 1976, 1977, 1978, 1979, 1980, 1981, 1982 |
Chevrolet S10 | 1982, 1983, 1984, 1985 |
Chevrolet S10 Blazer | 1983, 1984 |
Chrysler Conquest | 1987, 1988, 1989 |
Chrysler E Class | 1983, 1984 |
Chrysler Executive Limousine | 1985 |
Chrysler Executive Sedan | 1983, 1984 |
Chrysler LeBaron | 1982, 1983, 1984, 1985 |
Chrysler New Yorker | 1983, 1984, 1985 |
Chrysler Town & Country | 1982, 1983, 1984, 1985 |
Dodge 2000 GTX | 1989, 1990 |
Dodge 400 | 1982, 1983 |
Dodge 600 | 1983, 1984, 1985 |
Dodge Aries | 1981, 1982, 1983, 1984, 1985 |
Dodge Caravan | 1984, 1985, 1986, 1987 |
Dodge Challenger | 1978, 1979, 1980, 1981, 1982, 1983 |
Dodge Colt | 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991 |
Dodge Conquest | 1984, 1985, 1986 |
Dodge D50 | 1979, 1980, 1981, 1982 |
Dodge Mini Ram | 1984, 1985, 1986, 1987, 1988 |
Dodge Omni | 1978 |
Dodge Power Ram 50 | 1983, 1984, 1985, 1986 |
Dodge Raider | 1987, 1988, 1989 |
Dodge Ram 50 | 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992 |
Eagle 2000 GTX | 1991, 1992, 1993 |
Eagle Summit | 1989, 1990, 1991, 1992 |
Eagle Talon | 1990, 1991, 1992, 1993 |
Eagle Vista | 1988, 1989, 1990, 1991 |
GMC S15 | 1982, 1983, 1984, 1985 |
GMC S15 Jimmy | 1983, 1984 |
Hyundai Elantra | 1992 |
Hyundai Excel | 1986, 1987, 1988, 1989, 1990, 1991, 1992 |
Hyundai Pony | 1983, 1984, 1985, 1986, 1987 |
Hyundai Scoupe | 1991, 1992 |
Hyundai Sonata | 1989, 1990, 1991, 1992 |
Hyundai Stellar | 1985, 1986, 1987 |
Isuzu I-Mark | 1981, 1982, 1983, 1984, 1985 |
Isuzu Impulse | 1983, 1984, 1985, 1986, 1987, 1988, 1989 |
Isuzu Pickup | 1981, 1982, 1983, 1984, 1985, 1986, 1987 |
Isuzu Trooper | 1984, 1985, 1986, 1987 |
Mazda 626 | 1984, 1985 |
Mazda B2600 | 1987, 1988 |
Mitsubishi Cordia | 1983, 1984, 1985, 1986, 1987, 1988 |
Mitsubishi Eclipse | 1990, 1991, 1992 |
Mitsubishi Expo | 1992, 1993 |
Mitsubishi Expo LRV | 1993 |
Mitsubishi Galant | 1985, 1986, 1987, 1989, 1990, 1991, 1992, 1993 |
Mitsubishi Mighty Max | 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992 |
Mitsubishi Mirage | 1985, 1986, 1987, 1988, 1989, 1990, 1991 |
Mitsubishi Montero | 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991 |
Mitsubishi Precis | 1987, 1988, 1989, 1990, 1991, 1992 |
Mitsubishi Starion | 1983, 1984, 1985, 1986, 1987, 1988 |
Mitsubishi Tredia | 1983, 1984, 1985, 1986, 1987, 1988 |
Mitsubishi Van | 1987, 1988, 1989, 1990 |
Plymouth Arrow | 1976, 1977, 1978, 1979, 1980 |
Plymouth Arrow Pickup | 1979, 1980, 1981, 1982 |
Plymouth Caravelle | 1983, 1984, 1985 |
Plymouth Champ | 1979, 1980, 1981, 1982 |
Plymouth Colt | 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992 |
Plymouth Conquest | 1984, 1985, 1986 |
Plymouth Horizon | 1983 |
Plymouth Laser | 1990, 1991, 1992, 1993 |
Plymouth Reliant | 1981, 1982, 1983, 1984, 1985 |
Plymouth Sapporo | 1978, 1979, 1980, 1981, 1982, 1983 |
Plymouth Turismo | 1983 |
Plymouth Voyager | 1984, 1985, 1986, 1987 |
