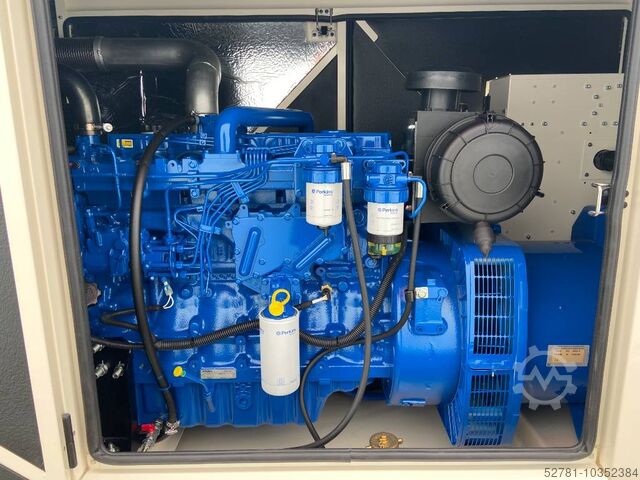

Génératrice FG WILSON P150-5 | Moteur Perkins | 120Kw Prime | 132Kw Stand-by | 60Hz
Génératrice FG WILSON P150-5 | Moteur Perkins | 120Kw Prime | 132Kw Stand-by | 60Hz
Prix habituel
$0.00
Prix habituel
Prix promotionnel
$0.00
Prix unitaire
/
par
GENERATOR SET SPECIFICATIONS
Minimum Rating | 135 kVA / 108 kW |
Maximum Rating | 165 kVA / 132 kW |
Emissions/Fuel Strategy | Fuel Optimised |
60 Hz Prime | 150 kVA / 120 kW |
60 Hz Standby | 165 kVA / 132 kW |
Frequency | 60 Hz |
Speed | 1500 or 1800 RPM |
Voltage | 110-480 Volts |
60 Hz Prime Rating | These ratings are applicable for supplying continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted on these ratings. The alternator on this model is peak continuous rated (as defined in ISO 8528-3). |
Engine Model | Perkins® 1106A-70TG1 |
Bore | 105 mm (4.1 in) |
Stroke | 135 mm (5.3 in) |
Governor Type | Mechanical |
Displacement | 7.0l (427.8 cu. in) |
Compression Ratio | 18.2:1 |
