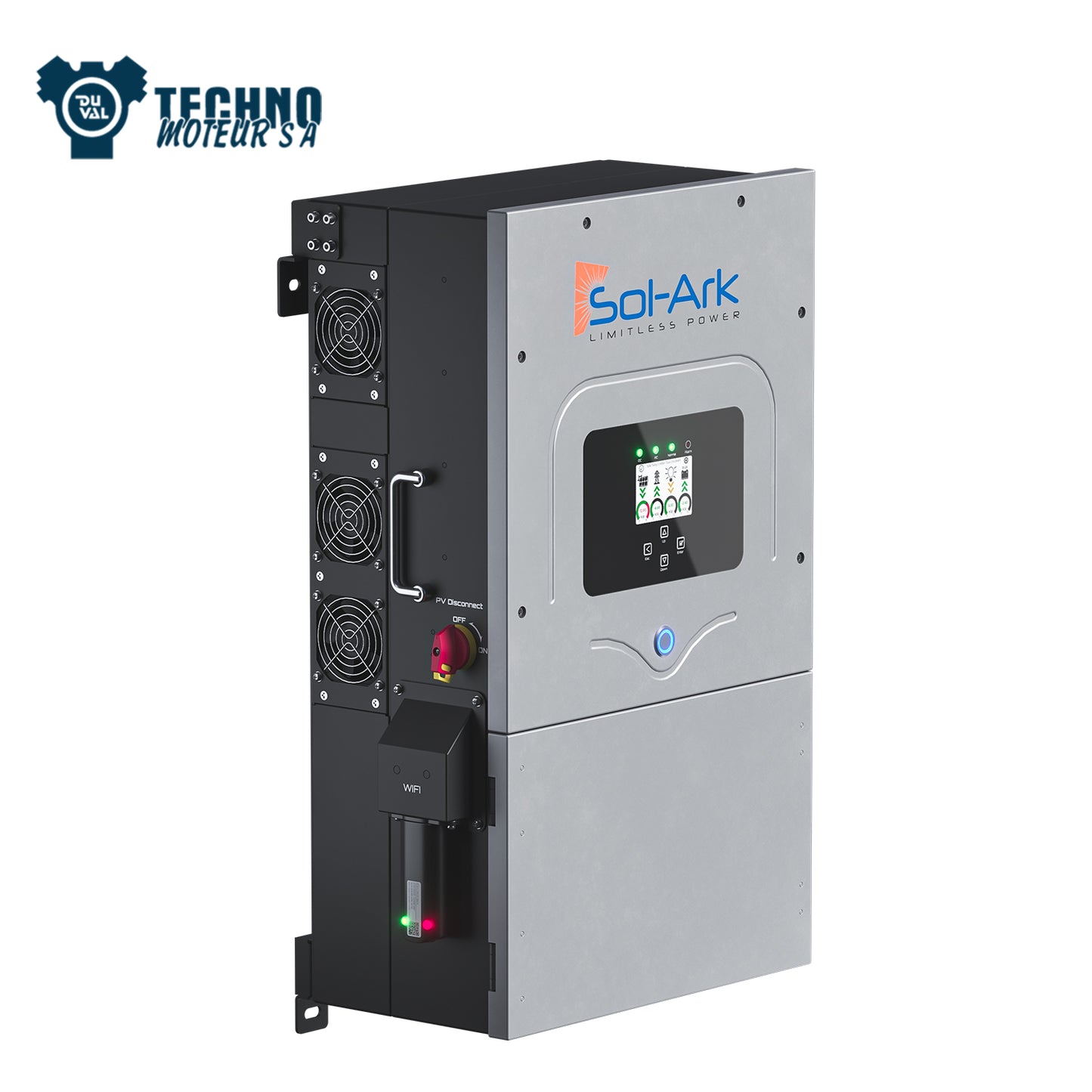

Sol-Ark > 12,000 Watt 48 Volt All-In-One Solar Generator - Inverter
Manufacturer Part Number: 12K aka 12k-2P-N aka Sol-Ark-12k-P
Sol-Ark 12K All-In-One Solar Generator System
Parallel Stacking (1-9), Grid Sell, Meter Zero, Time of Use, Smart Load, Peak Shaving, 20kW Peak Power, 9.6kW AC Coupling
-
DC Transformerless:
Boosts PV energy 10-20% without increasing PV array size and reduces storage inverter costs up to 30% -
Battery Efficiency:
Improve battery efficiency by 10-15%; Partial Charge Carbon AGM’s round trip efficiency is 98% vs. wet cell 80% -
Easy to Install:
Sol-Ark 12K’s All-In-One design cuts install time in half. With 2x MPPTs, and 9kW continuous / 20kW peak inverter, a user friendly wiring area, and remote monitoring built in. -
U.P.S.:
Sol-Ark 12K acts as a massive uninterruptible power supply with a lightning fast 4ms transfer time.
Approved for: UL 1741 SA Rule 21, HECO, & Canada PREPA Approved for Puerto Rico 120/240 & 208V
Specifications
| Input Data | |
|---|---|
| Max allowed PV DC Capacity | 13,000W |
| Nominal Voltage Range | 175 - 425V |
| Startup Voltage | 125V |
| Max DC voltage | 500V |
| Max. Input Current per MPPT | 20A (self-limiting) |
| MPPT Starting Voltage | 125V |
| Number of MPPT | 2 |
| Max Solar Strings Per MPPT | 2 |
| Max. AC Coupled Input | 9,600W |
| Output Data (AC) | |
|---|---|
| Nominal AC Output Voltage | 120/240/208V split phase |
| Peak Inverter Efficiency | 96.5% (Peak 97.5%) |
| Continuous AC power to Grid (On Grid) | 9000W 37.5A L-L (255 V) 4800W 40A L-N (120V) |
| Continuous AC power to Loads (Off-Grid) | 8000W 33A L-L (240V ) 4800W 40A L-N (120V) |
| Battery Input Data (DC) | |
|---|---|
| Battery Technologies | Lithium / Lead Acid |
| Nominal DC Input | 48V |
| Capacity | 50 – 9900Ah |
| Grid to Battery Charging Efficiency | 96.0% |
| General Data | |
|---|---|
| Dimensions (H x W x D) | 29.5” x 17.7” x 10.00” |
| Weight | 78 lbs |
| Protection and Certifications | |
|---|---|
| Electronics Certified Safety by SGS Labs to NEC & UL Specs - NEC 690.4B & NEC 705.4/6 | YES |
| Grid Sell Back — UL1741-2010/2018, IEEE1547a 2003/2014, FCC 15 Class B, UL1741SB, CA Rule 21, HECO Rule 14H | YES |
| PV DC Disconnect Switch — NEC 240.15 | Integrated |
| Ground Fault Detection — NEC 690.5 | Integrated |
| PV Rapid Shutdown Control — NEC 690.12 | Integrated |
| PV Arc Fault Detection — NEC 690.11 | Integrated |
| PV Input Lightning Protection | Integrated |
| PV String Input Reverse Polarity Protection | Integrated |
| AC Output Breaker - 63A | Integrated |
| 250A Battery Breaker / Disconnect | Integrated |
| Surge Protection | Integrated |
