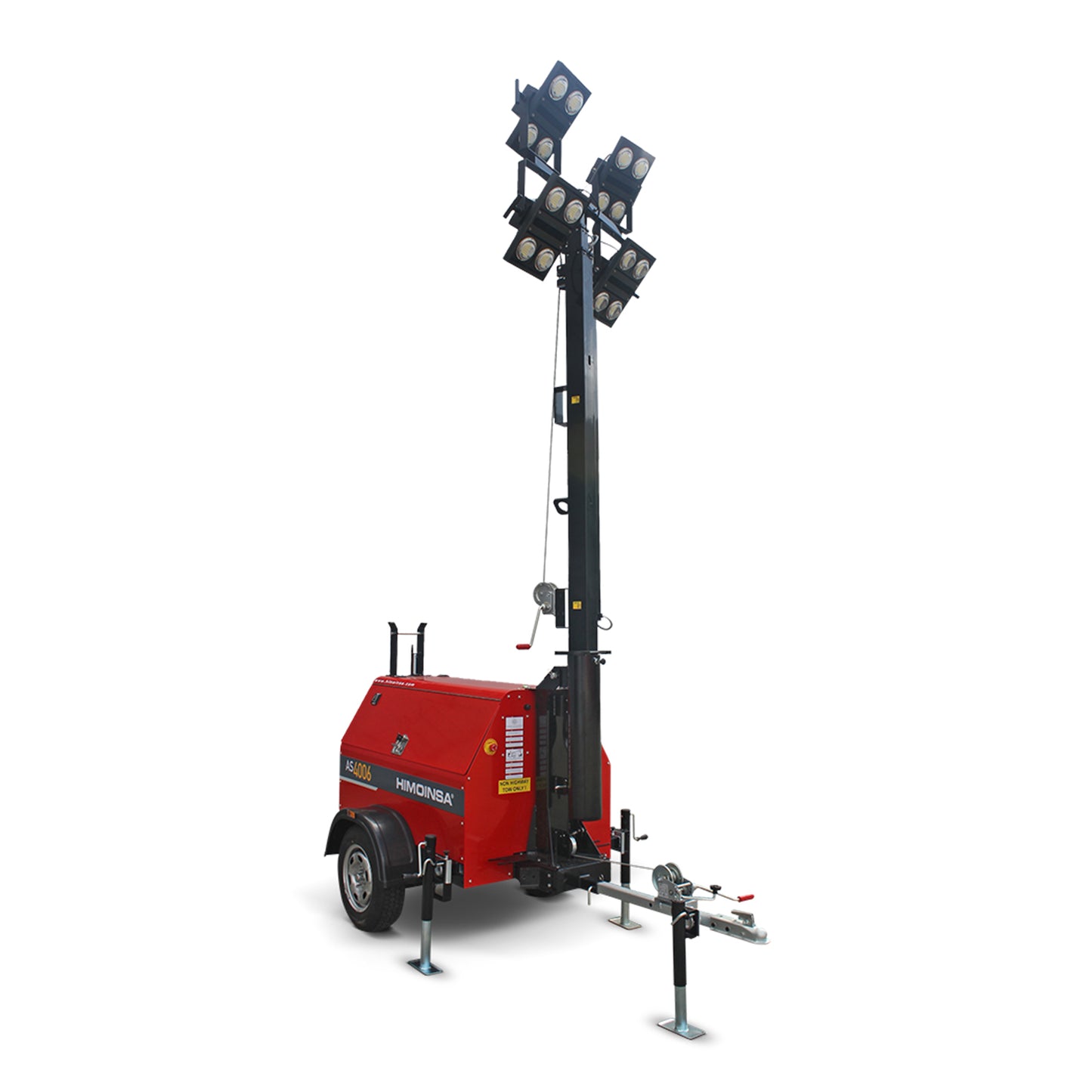

Himoinsa Apolo AS 4006 M6 | Monophasé | Diesel | Sur châssis | Moteur YANMAR

Model

AS4006 M6

Height (meters) :9.07

Lumens :196.000 lm

Diesel

YANMAR

MECC ALTE

360º manual

LED

Emissions

Non complying EPA

Specs

• Series: Apolo Start
• Model: AS4006 M6
• Power (PRP): 6
• Voltage: 230
• Maximum dimensions (in working position): 3162 x 2781 x 9068
• Minimum dimensions (in transport mode): 3944 x 1451 x 1892
• Weight: 747 Kg
• Tank capacity: 114
• Autonomy: 126

Moteur

• Model: YANMAR 3TNM72GHFCL
• Frequency: 60 Hz
• R.P.M.: 1.800
• Engine type: 4-stroke diesel
• Type of injection: Indirect
• Type of aspiration: Natural
• Cylinders, number and arrangement: 3 - L
• Diameter x Stroke: 72 x 74
• Total Displacement: 0.904
• Cooling System: Coolant
• Engine oil specifications: SAE 3 class 10W30 / API grade CD,CF
• Fuel consumption (Lights only): 0.9
• Controller: Mechanical
• Air filter: Dry

Alternateur

• Poles: 4
• Type of connection (standard): Series
• Coupling Type: S-5 6,5"
• Degree of protection insulation: H class
• Degree of mechanical protection (according to IEC-34-5): IP21
• Excitation System: Self-regulated brushless
• Voltage regulator: Capacitor
• Support type: Single bearing
• Coupling system: Flexible disc
• Type of coating: Standard (Vacuum impregnation)

Mast

• Mast type: Manual
• Mast sections: 3
• Rotation: 360º manual
• Double security lock: Standard
• Lamps / spotlights: 4 x 350 W
• lamps type: LED
• Total lumens: 4 x 49000 = 196.000 lm
• Remaining power: 4,6

Canopy

• Canopy: Standard
• Auxiliary sockets: 2 x 16 Amp
• Lifting hook: Standard

Chassis

• Chassis Traction Kit: Standard
• Light indicator: Reflectors (rear light kit optional)
• Wheels: 2 x 165R13
